TRUE-MOX 915 (RP-SMA Male)
TRUE-MOX 915 (RP-SMA Male)

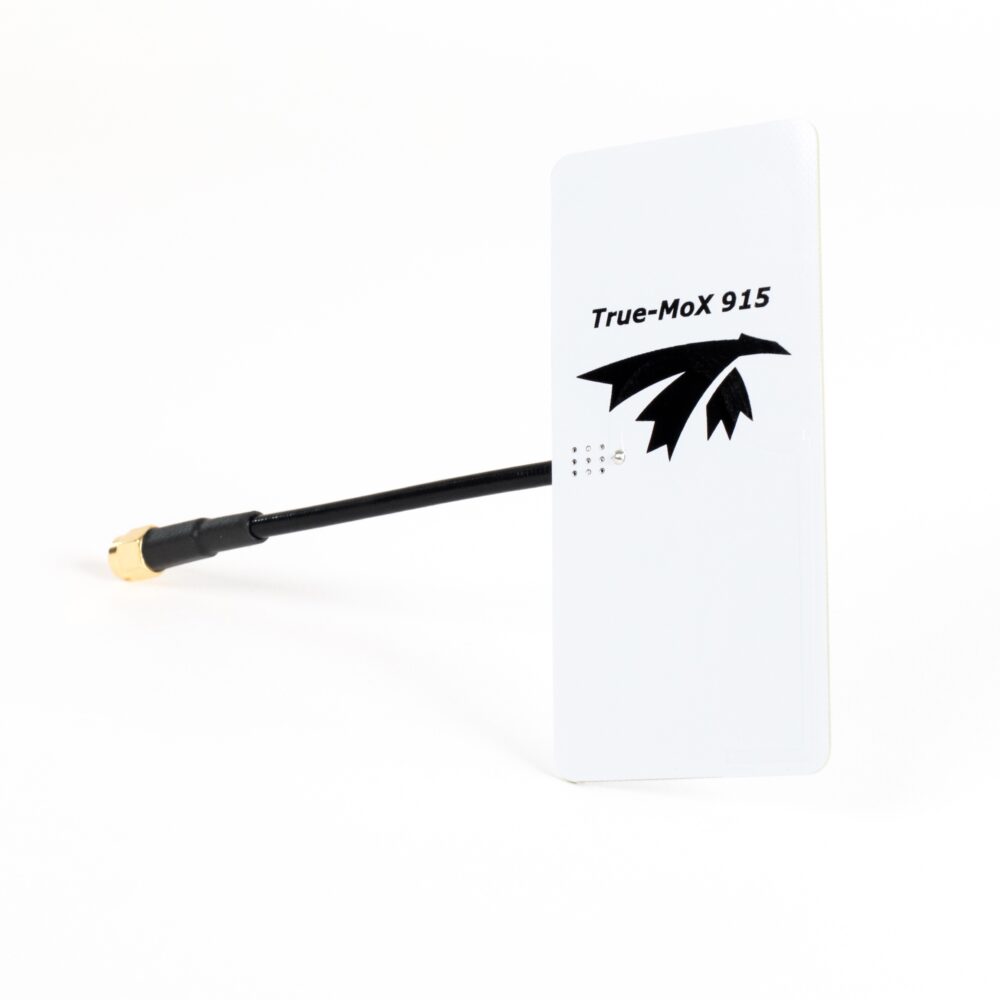

The True-MoX 915 is TrueRC's revision of the moxon using latest 3D electromagnetic simulation tools and RF rated PCB. Gorilla Link is proud to offer this premium product in RP-SMA male connectors so it will fit with all our transmitters
Interactions with radio or pilot’s body are kept at near zero thanks to patent pending design. Note that this is not a patch, do not point the flat part toward the target. Point the long edge of the white panel toward the intended flight area. Having the long edge vertical produce vertical polarization
Specs
- Frequencies: 902-925MHz
- Gain:5.4dBi

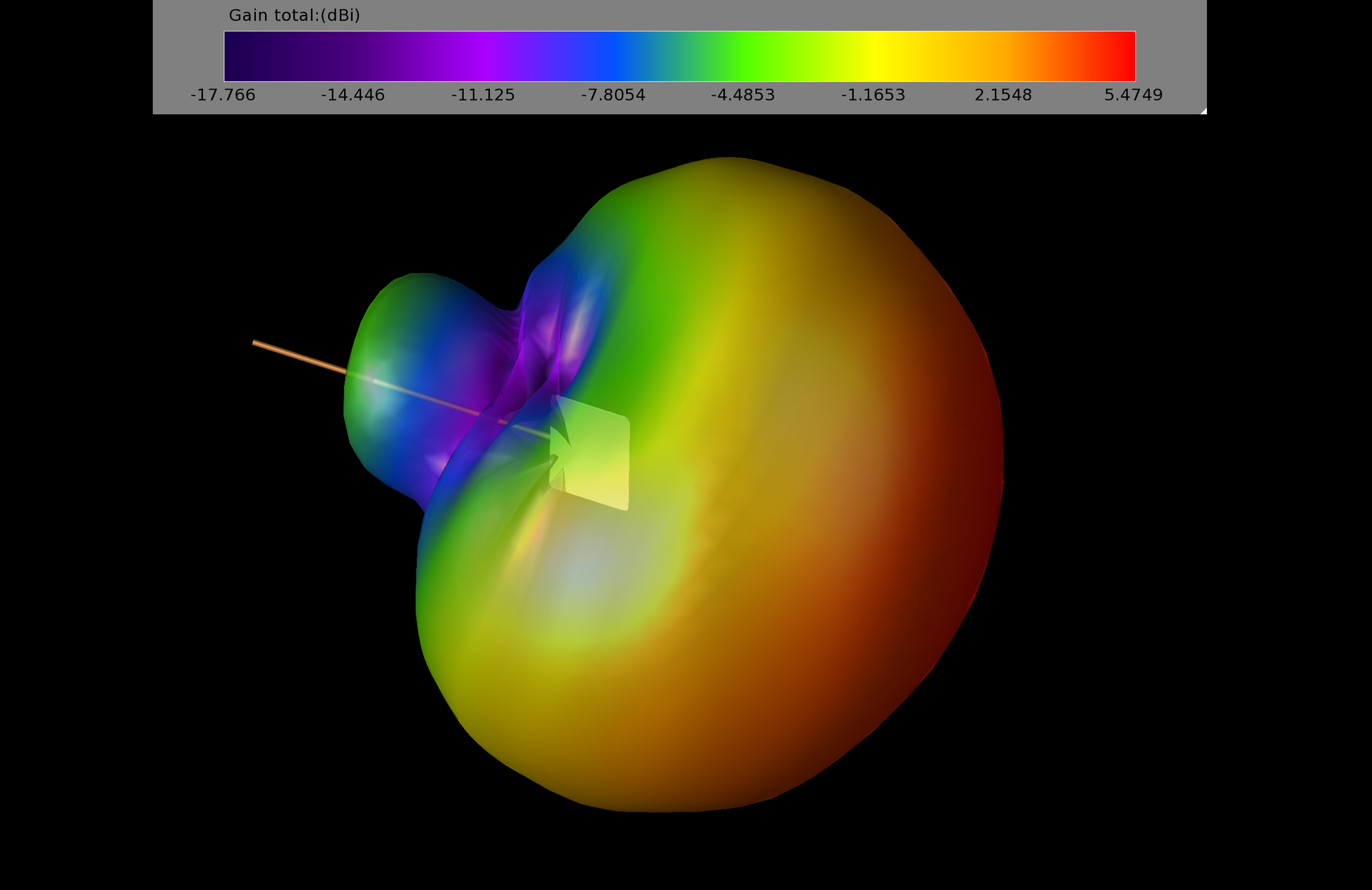

- Beam width*: 156deg
- Beam width @-3dB**: 133deg
- Connector: SMA
- Dimensions: 103mm x 165mm
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
Patent pending.
