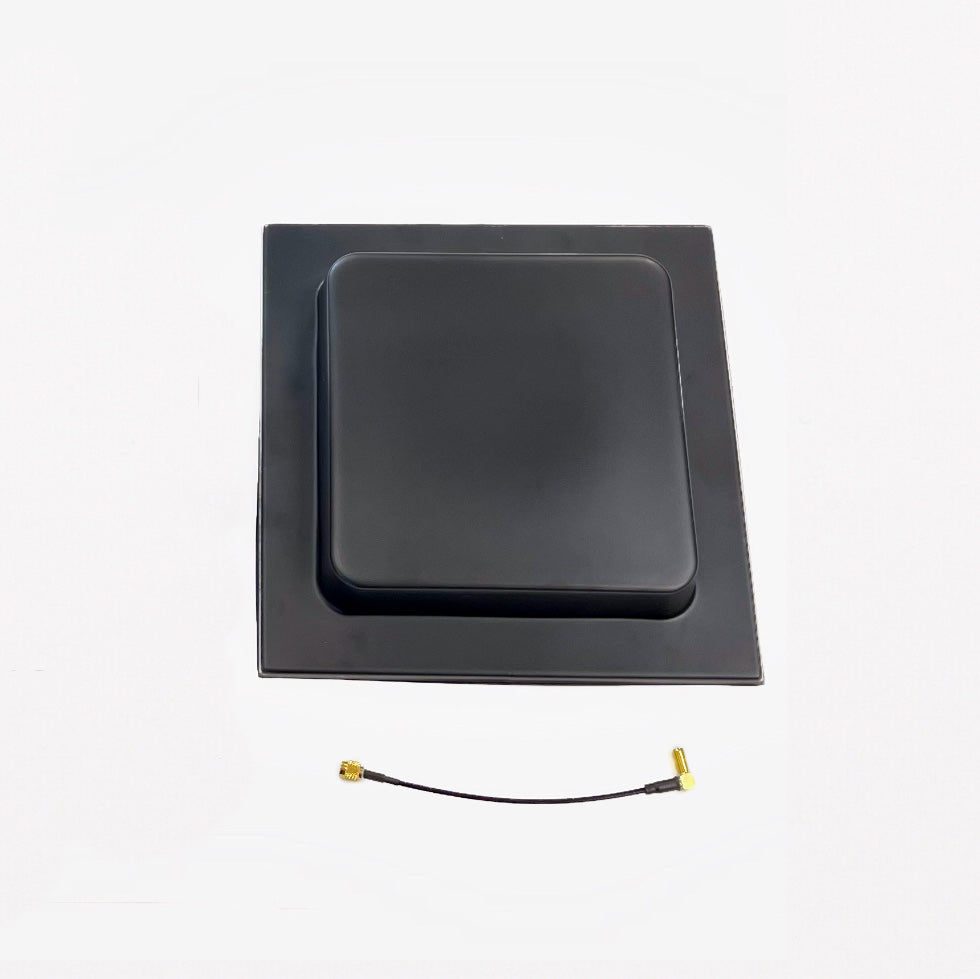

LINE-AIR 900

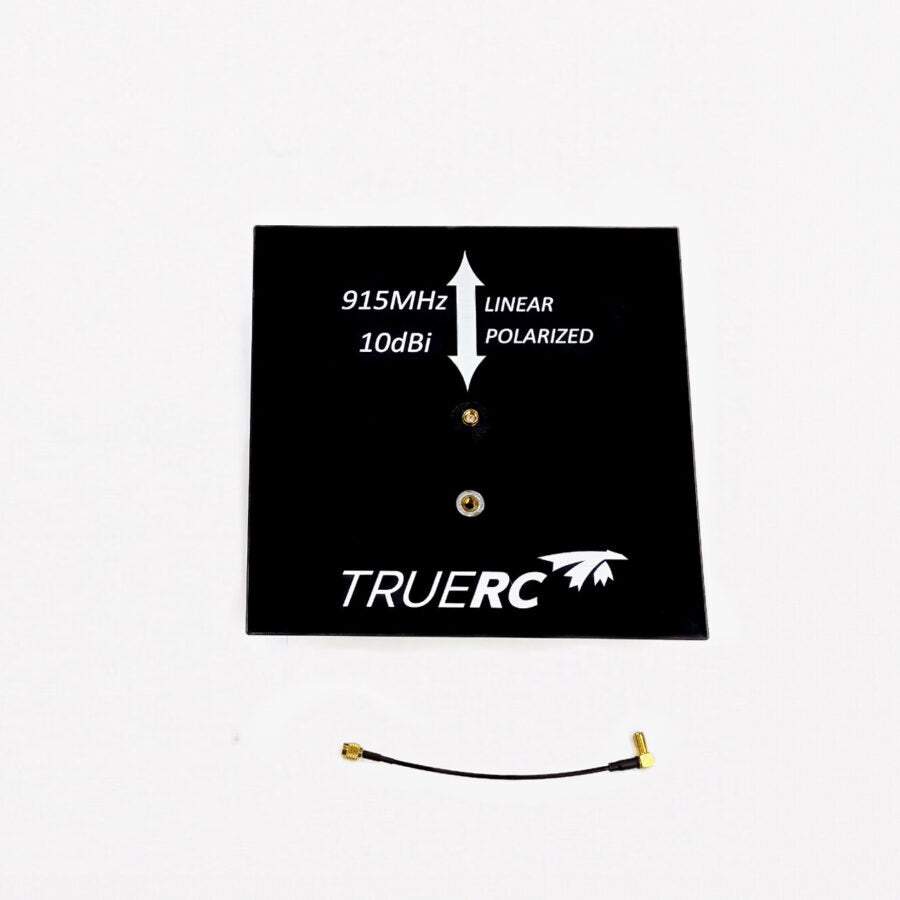

The Line-AIR 900 is TrueRC's latest redesign of the biquad antenna. They managed to pack the famous biquad punch in less than half the typical size. A "1/4-20" mounting point in the back, makes it feather-weight & super easy to attach to your ground station.

Specs

• Frequency: 900MHz ISM band
• Gain: 10 dBi
• Polarization: Linear
• Radiation efficiency : 99%
• Beam-width*: 120deg
• Beam-width @-3dB**: 68deg
• Connector: SMA male
• Dimension: 222mm x 222mm x 45mm
• Mounting: Standard 1/4-20 flush thread
• Weight: 224g
• Included 15cm flexible low loss extension.

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
