Long Range 900/915 MHz Receiver DIVERSITY! (Double Antenna) ELRS 3.2.0

Dual antenna avoids dead zones and enables long range transmission to air, land, and sea.

 Super light-weight!

SPECS:

Dimension: 32*13.5*5mm (L × W ×H)

Weight: 4.3g (with antennas)

Numbers of channel: 16 with full-resolution

With RSSI Output : Analog 0~3.3V

Operating Voltage Range: DC 3.5V~12.6V (1~3s Li-Battery)

Operating Current: 100mA@5V

Operating Range: up to 30km or more!

Telemetry Interface: Smart Port

GPS logging with radio! Never lose the last point again!

Telemetry power output: 100 mW, +20 dbm

Upgrade Interface: Smart Port, (Bootloader), also ST-Link

Compatibility: Express LRS (all versions)!!! Open Source & Future Proof Software

INCLUDES:

1x Double Antenna Receiver, flashed to latest ELRS firmware (3.0.0)

2x heat shrink (black and yellow choice)

2x cable harness (one is already pinned for ELRS)

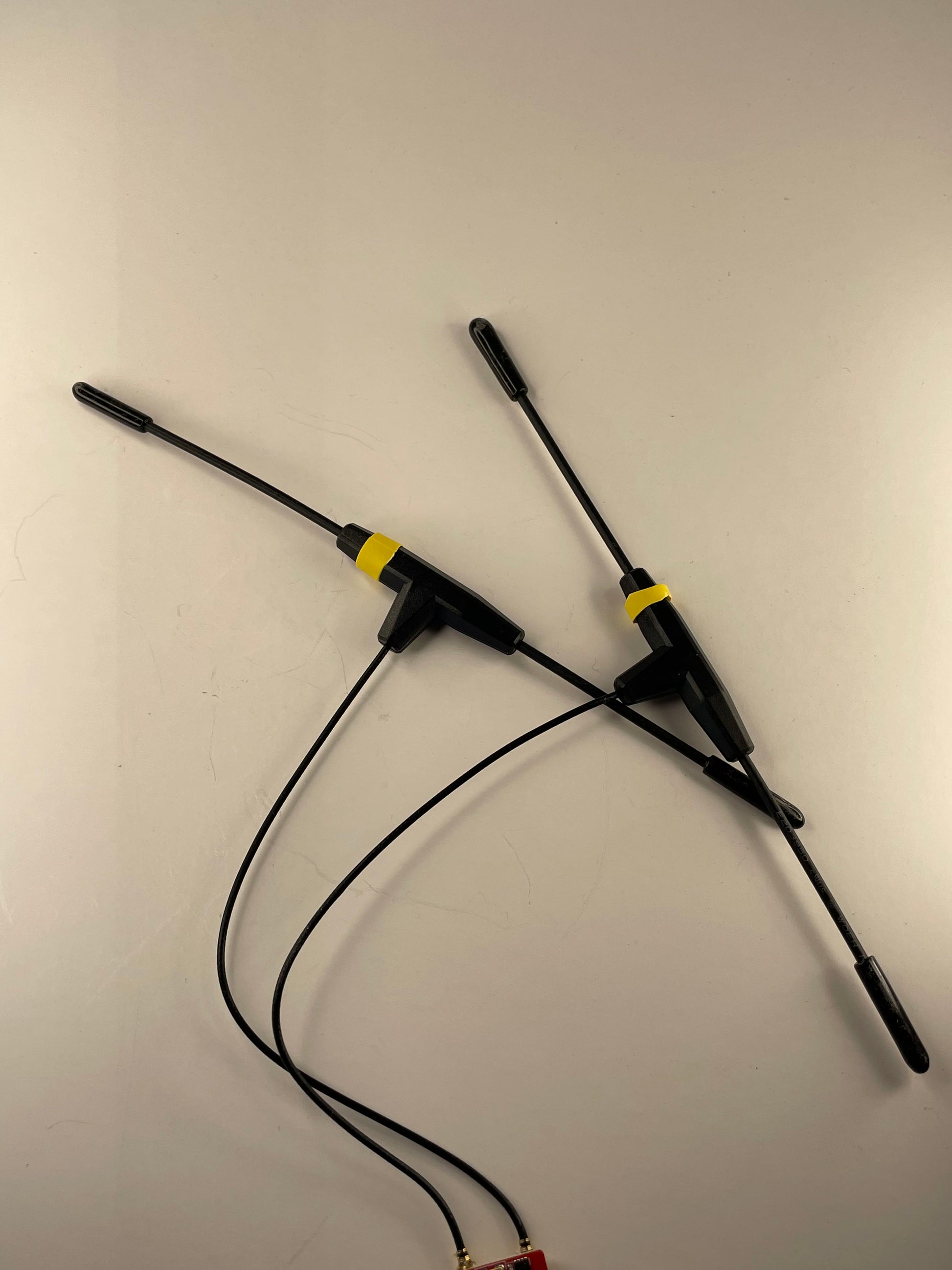

2x T-style antennas (dipole) with Ufl connector
